Description

Product details

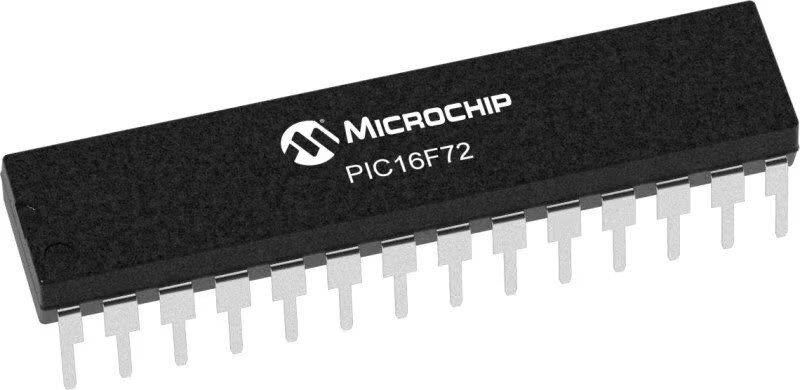

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F72 features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, capture/compare/PWM function and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus. All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

Keywords

• SPI™
• capture
• Digital
• PIC16C5X
• features
• I/SP MCP
• I²C™) bus
• PIC12CXXX
• Microchip
• converter
• 5 channels
• industrial
• automotive
• appliances
• 8-bit Analog
• The PIC16F72
• 28-pin package
• PIC16C7X devices
• 2 additional timers
• compare/PWM function
• consumer applications
• synchronous serial port
• powerful PIC® architecture
• 35 single word instructions
• 2-wire Inter-Integrated Circuit
• advanced level A/D applications
• 3-wire Serial Peripheral Interface
• CMOS FLASH-based 8-bit microcontroller
• powerful (200 nanosecond instruction execution
